PVC Pipe Production Line
The production line consists of conical twin screw extruder, vacuum tank, haul-off, cuttting unit. Main features: High output, power comsumption low, water comsumption low, ground cover small, labour cost low, noise low, dust less, etc.
Main Features:
Specified screw design for better material plasticizing＆mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, multi-caterpillar
structure of haul-off unit, suitable for different size range.

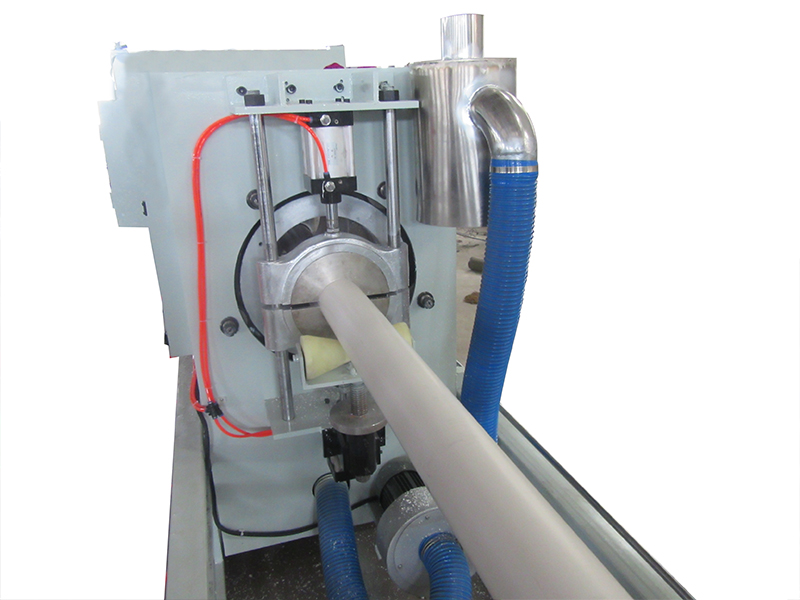

Planetary cutting with chamfering function for stable＆reliable cutting and precise length-counting.
Main technical parameters
Technical Specifications
|
Model |
Pipe range/mm |
Capacity kg/h
|
Maximum linear velocity |
Main motor power /kw
|
Total length/m |
|
SJSZ-65/132 |
50-110 |
120-250
|
6 |
37
|
22 |
|
SJSZ-80/156 |
110-250 |
250-400
|
5 |
75
|
23 |
|
SJSZ-92/188 |
315-630 |
400-700
|
1.5 |
110
|
32 |

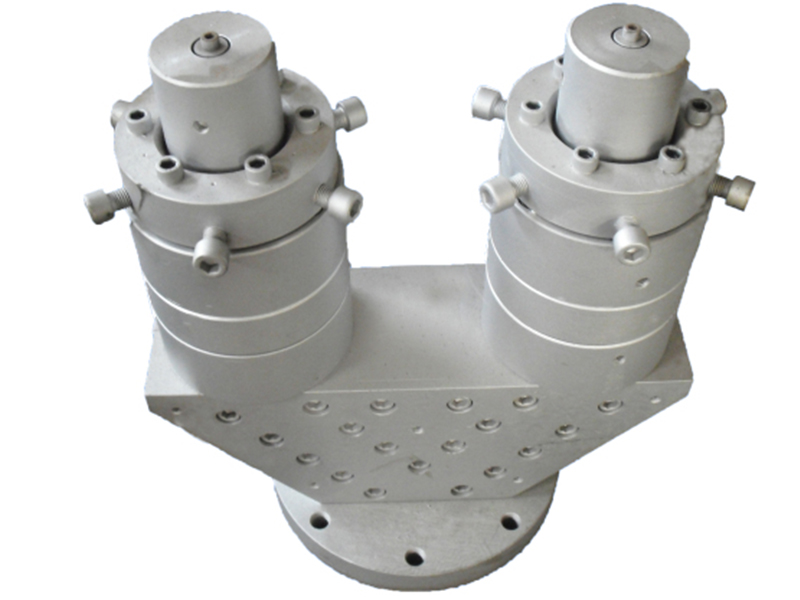

PVC Double-Pipe Production Line
|
Model |
Pipe Diameter |
Output |
Max Speed |
Motor |
Total Length |
|
SJSZ-65/132 |
50-75mm |
250-350 kg/h |
6m/min*2 |
30kw |
22m |
|
SJSZ-80/156 |
50-110mm |
500-750kg/h |
8m/min*2 |
55kw |
23m |

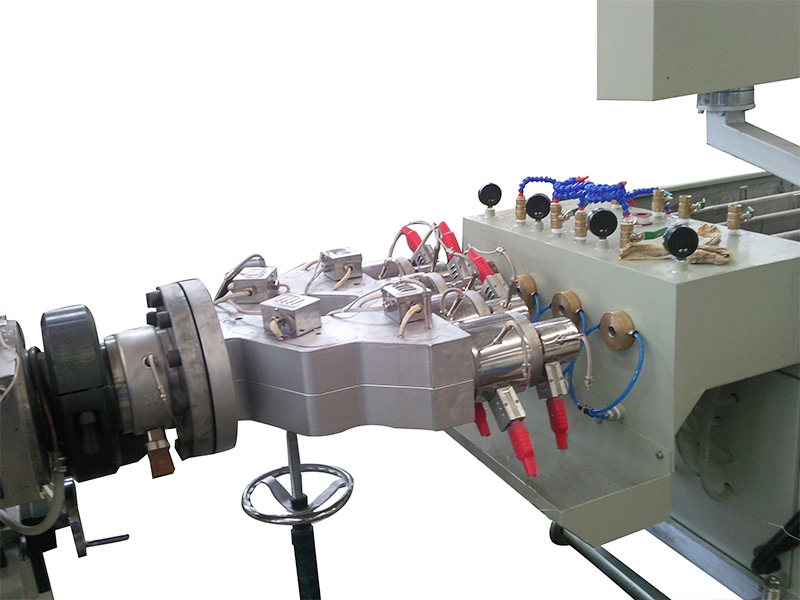

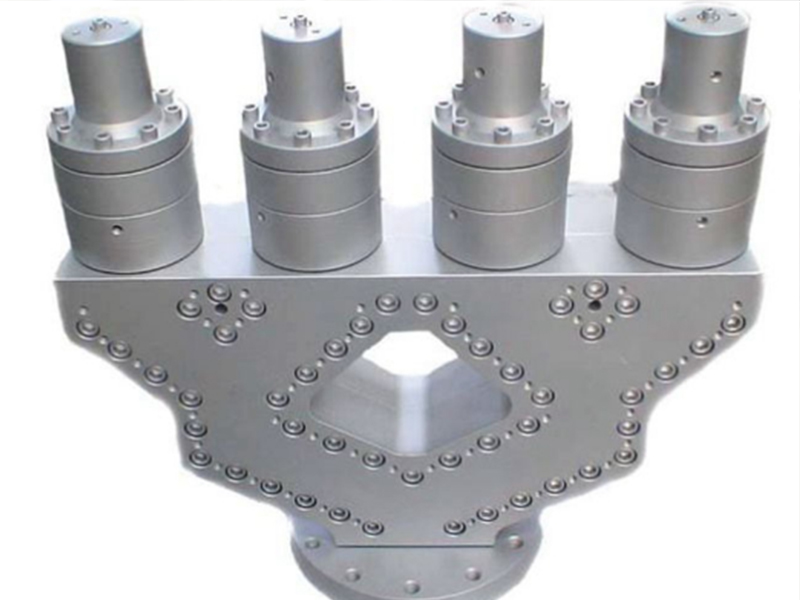

PVC Four-Pipe Production Line
|
Model |
Pipe Diameter |
Output |
Max Speed |
Motor Power |
Total Length |
|
SJSZ-65/132 |
16-32mm |
250-350kg/h |
15m/min*4 |
30kw |
17m |
