PERT Pipe Production Line
Brief introduction

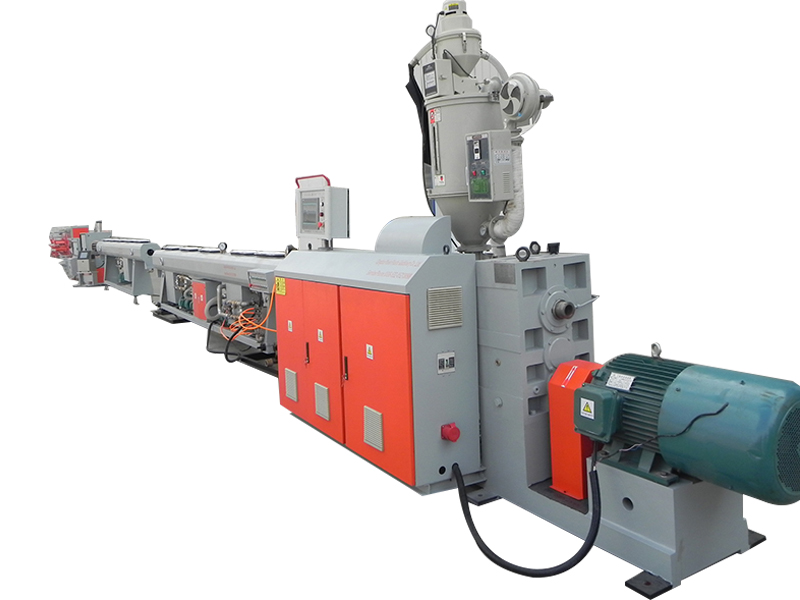

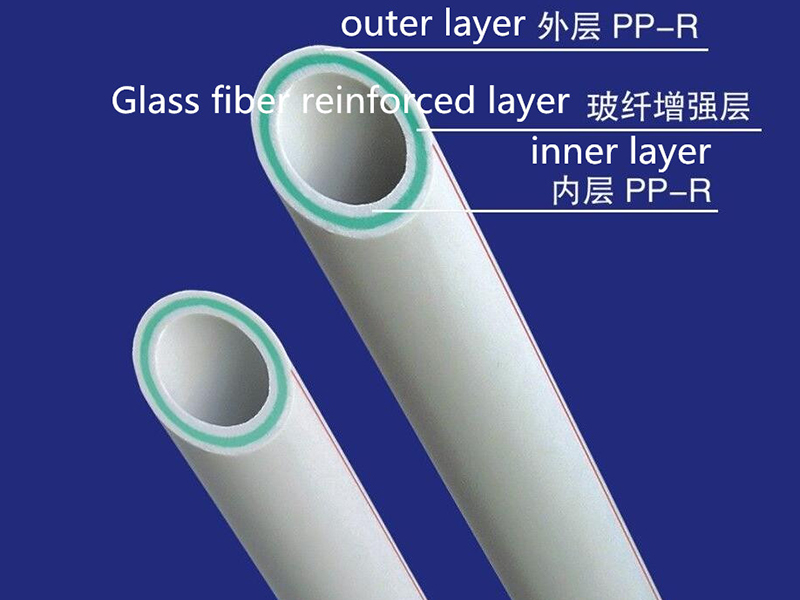

The PERT,PP-R pipe production line consists of hopper dryer, single-screw extruder, die head, co-extruder,vacuum calibration tank, spray cooling tank,haul-off, printer, cutter and stacker. For Producing three layer glass fiber reinforced PP-R pipe, one special extruder is needed for fiberglass layer extrusion.
Application:
Drinking water transportation
Cold water and hot water transportation
underfloor heating water pipe
solar heating water pipe
Technical parameters
Technical Specifications
|
Model |
PP-R-63 |
PP-R-110 |
PP-R-160 |
|
Pipe range/mm |
Φ20-63 |
Φ20-110 |
Φ50-160 |
|
Model |
SJ-65 SJ-25 |
SJ-75 SJ-25 |
SJ-90 SJ-25 |
|
Capacity kg/h |
120 |
180 |
250 |
|
Installed power /kw |
94 |
175 |
215 |
|
Total length/m |
35 |
42 |
45 |
